Introduction

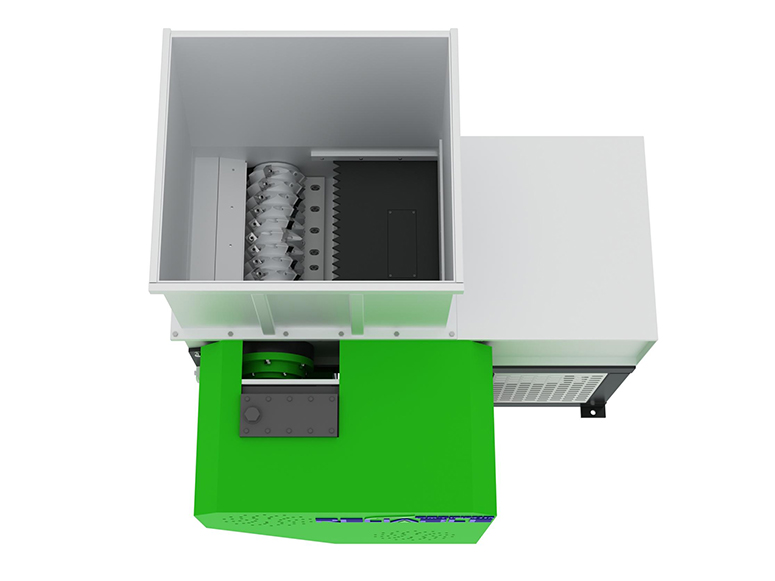

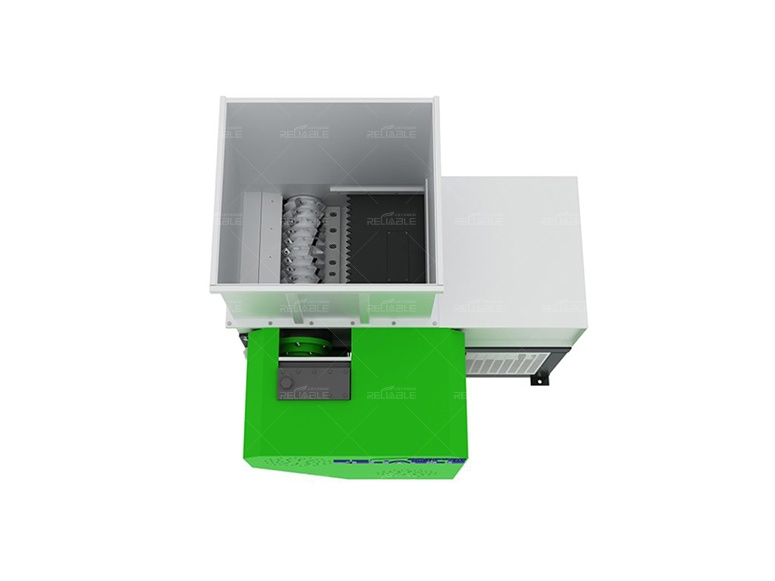

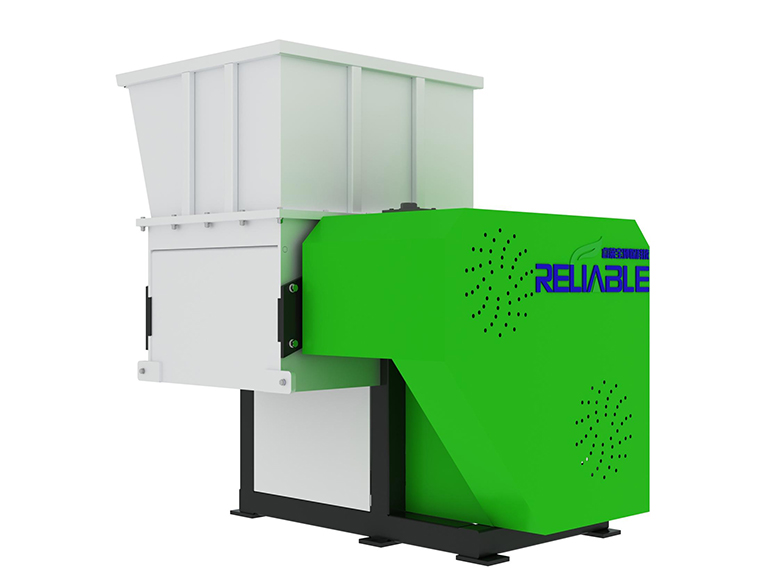

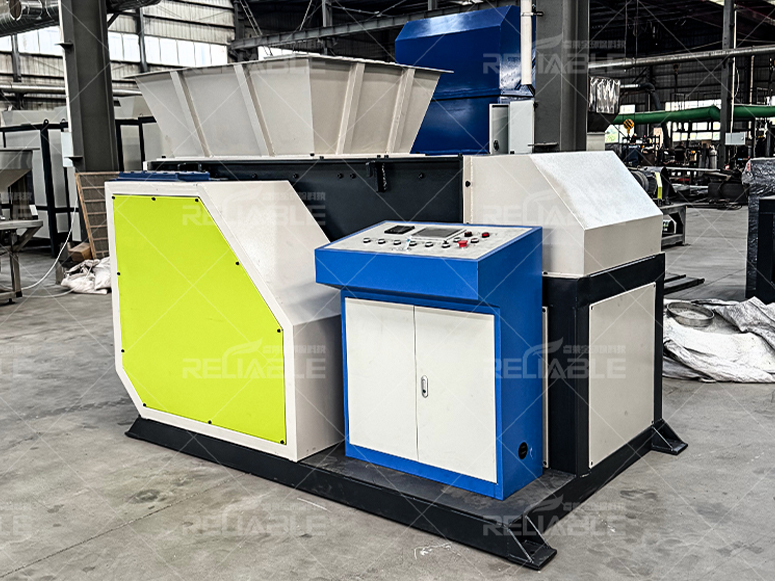

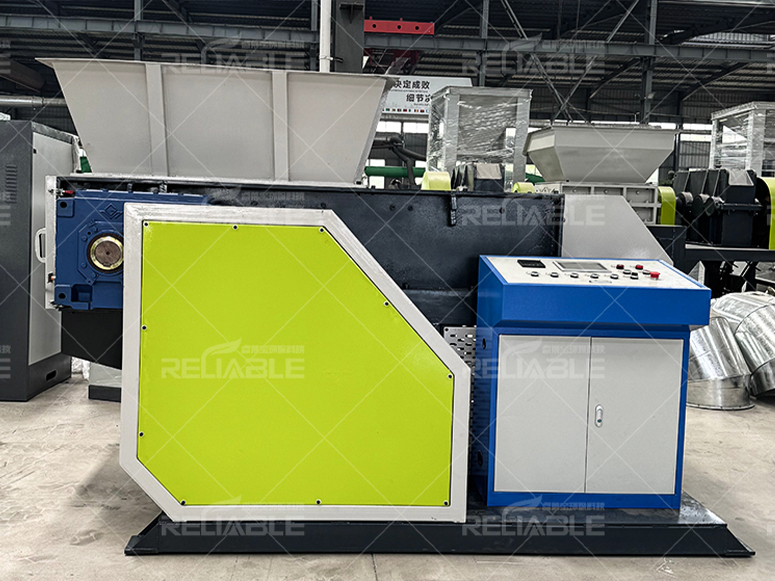

The Single Shaft Shredder by RELIABLE is specifically designed to handle a variety of waste materials with precision and power. Whether it’s plastic, metal, wood, or e-waste, our single shaft shredder provides consistent, high-efficiency shredding with minimal downtime. This makes it a perfect solution for businesses looking to streamline their waste management process and boost operational efficiency.
Variety of Rotor to suit different applications
To meet the demands of various industries, the RELIABLE single shaft shredder comes with different rotor designs tailored to different material hardness and structure.
Applicable Materials
Ideal for materials like LDPE film, PET bottles, and woven bags.
Applicable Materials
Effectively processes hard plastics, pipes, and rubber compounds.
Applicable Materials
Handles dense materials such as thick plastic slabs, wooden blocks, and reinforced composites.
Prducts Detail
What you see is what you get

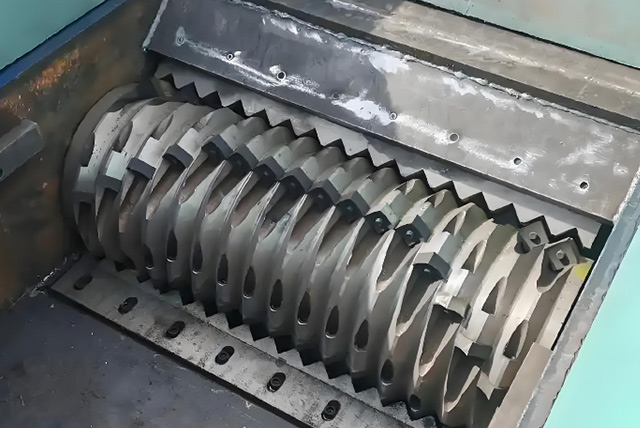

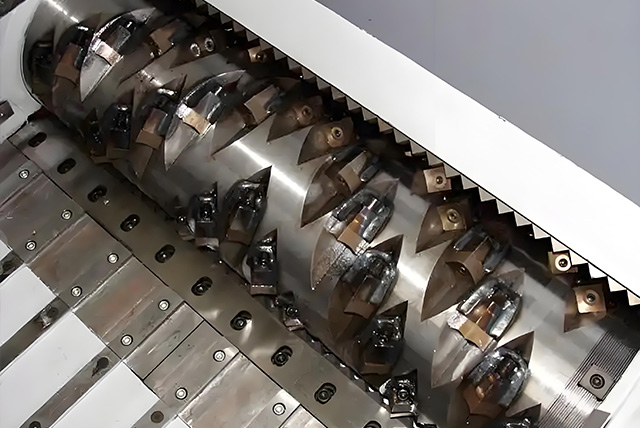

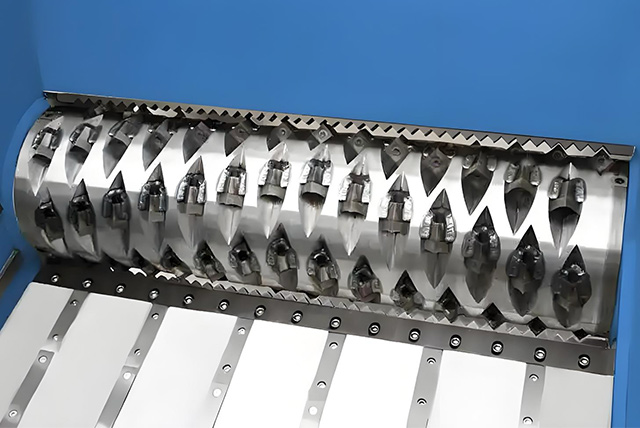

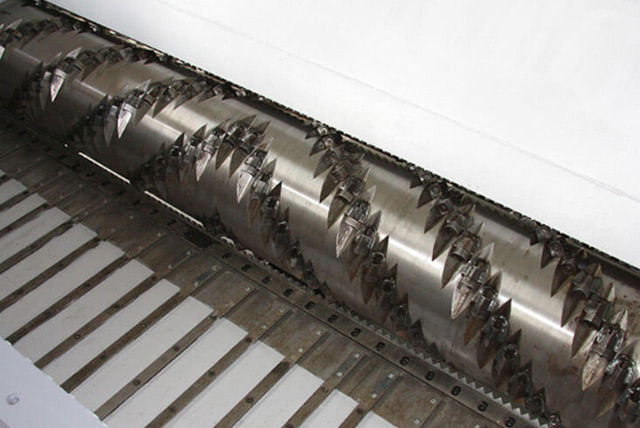

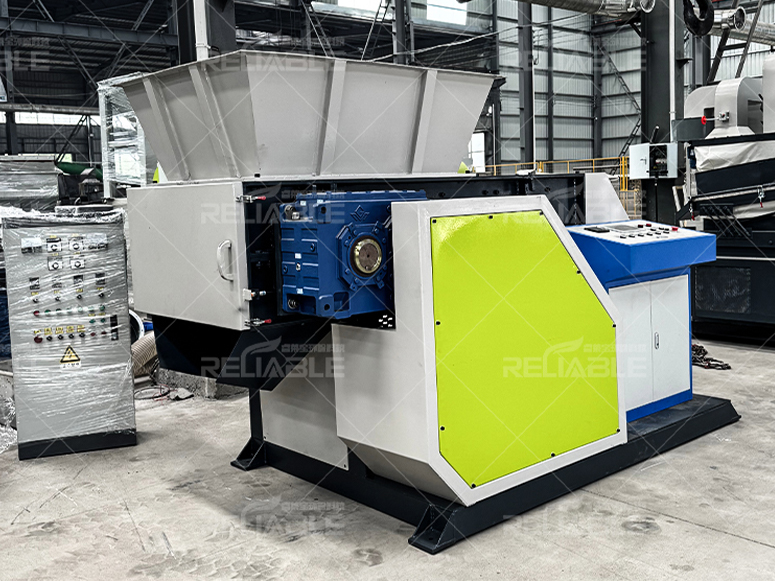

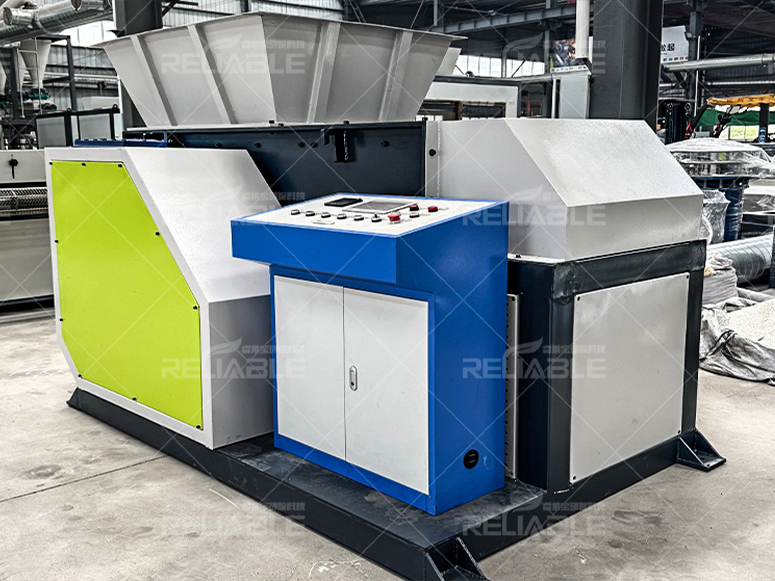

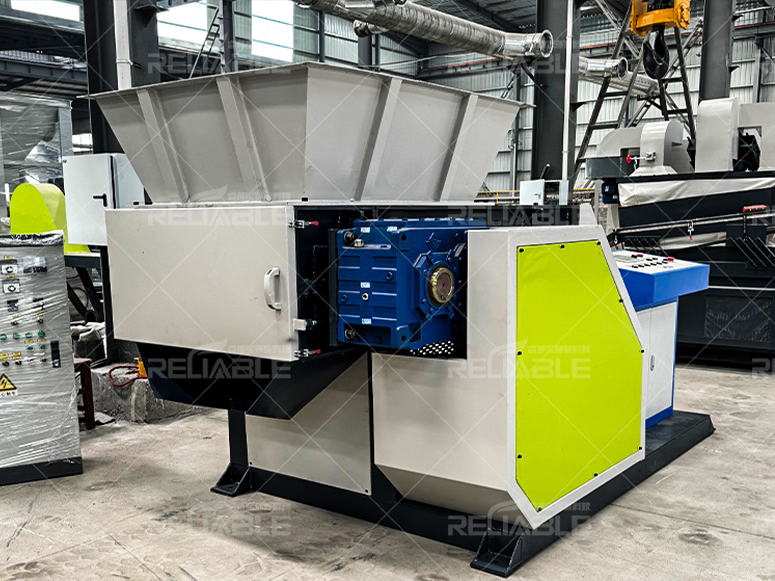

DETAIL 1
DETAIL 2
DETAIL 3
DETAIL 4
DETAIL 5
Key Applications
Scrap steel
Scrap Solar Panels
Refrigerator
Lithium battery
Engines
Electrical wires and cables
Circuit boards
Car Tires
Core Features
The single shaft shredder frame is constructed from hardened steel plates, ensuring vibration resistance and structural integrity, even under long-term high-load operations.
The rotating and stationary blades are made from premium alloy steel, heat-treated for superior wear resistance. The blade design ensures optimized cutting angles, offering clean, energy-efficient cuts and reducing power consumption.
The tool shaft is made of high-strength alloy steel, offering excellent torque transmission and stability, prolonging the service life of the shredder.
The single shaft shredder is designed for easy maintenance, with accessible bearing housings for quick disassembly and reduced downtime during service or blade replacements.
Why Choose RELIABLE Single Shaft Shredder
Proven Global Success
Our single shaft shredder is trusted in recycling facilities across Europe, Southeast Asia, and South America, proving its reliability and efficiency.
Customizable Designs
RELIABLE offers a range of rotor and blade configurations to meet specific material processing needs, from soft to heavy-duty waste.
Long-Term Investment
Built with durability in mind, our single shaft shredder reduces the frequency of repairs and lowers the total cost of ownership over its long lifespan.
Environmentally Friendly
Our shredder helps businesses meet environmental regulations by converting waste into valuable resources, reducing the need for landfills and contributing to a circular economy.
Contact RELIABLE for Your Custom Single Shaft Shredder Solution
Our team of engineers at RELIABLE is ready to work with you to customize a single shaft shredder solution that perfectly fits your recycling needs. Whether you’re processing plastics, metals, e-waste, or any other material, we offer the expertise and innovation to ensure optimal performance.
Get in touch with us today, and let’s start reducing your waste more efficiently and effectively!
Contact now!
Specification
| Model | S600 | S800 | S1000 | S1200 |
| Motor Power (kw) | 22 | 45 | 55 | 75 |
| Rotor – knives (pcs) | 26 + 4 | 36 + 6 | 48 + 6 | 58 |
| Blade Material | Cr12MoV SKDII D2 | Cr12MoV SKDII D2 | Cr12MoV SKDII D2 | Cr12MoV SKDII D2 |
| Rotor Diameter (mm) | 260 | 400 | 400 | 500 |
| Rotor Speed (r/min) | 75 | 75 | 75 | 80 |
| Cutting Chamber (mm) | 600×600 | 800×800 | 1000×1000 | 1200×1200 |
| Hydraulic Power | 2.2 | 3 | 4 | 5.5 |
| Cylinder Stroke (mm) | 600 | 800 | 1000 | 1200 |
| Machine Size (mm) | 1800x1600x1850 | 2200x1780x2100 | 2500x1850x2300 | 3500x2000x2400 |
| Weight (kg) | 2200 | 3700 | 4500 | 7000 |
Type of Knife
Overall knife structure
Suitable for tearing various materials, such as electronic garbage, hard plastic, rubber, packaging
Equipment knife structure
Suitable for tearing heavy me tals or thick plastic, such as refrigerators and metal barre Is with at
SW-type knife structure
Try it to tear the general products, such as wood and aluminum engine cases such as fragile or crisp
VZ knife structure
Suitable to tear the thin and light material materials, such as packaging aluminum, car shell, etc.
Pineapple knife structure
Suitable for hard plastic such as tearing circuit board, which can tear the material to less than 10
SPR knife structure
Suitable for handling life waste such as RDF.MSW. For pre-filled and open bags, the materials are r
