Introduction

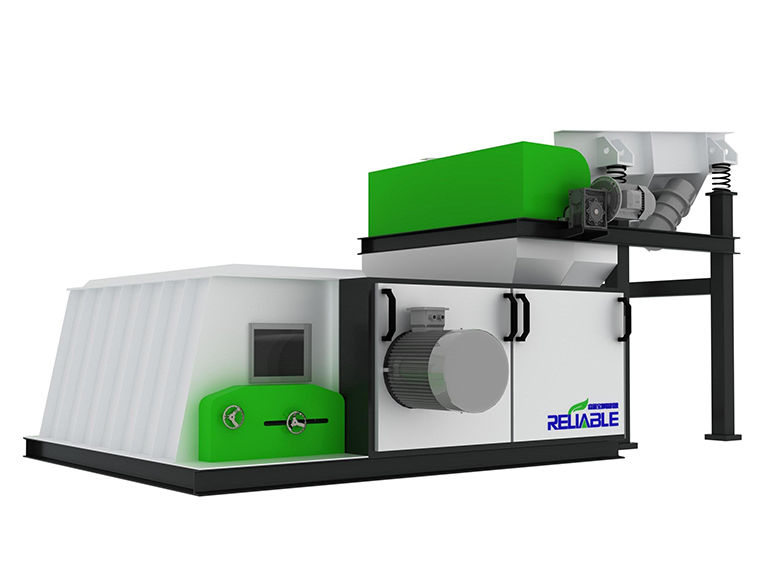

Product Details
What you see is what you get
Detail 1

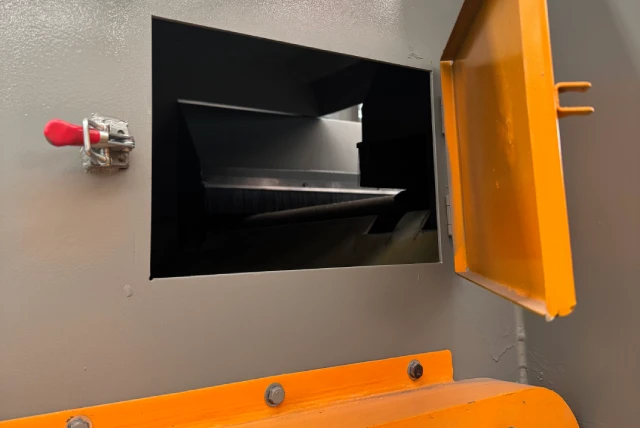

Detail 2
Detail 3
Detail 4

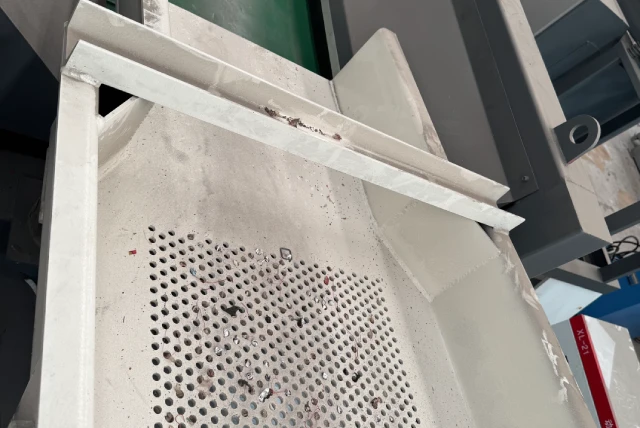

Detail 5
Working Principle
The Eddy Current Separator generates alternating magnetic fields through a high-speed rotating magnetic rotor. Eddy currents are induced on non-ferrous metals (such as aluminum and copper), and the magnetic field generated by the eddy currents repels the original magnetic field, making metal particles “fly off” from the material flow for precise separation.
Application Scenarios & Case Studies
- Domestic Garbage Separating: An environmental protection company has increased the aluminum recovery rate per ton of garbage from 68% to 95% through the application of RELIABLE eddy current separators, with a monthly increase of 80,000 yuan in revenue.
- Auto Shred Processing: Suitable for 3-50mm shredded particles, achieving 98% purity in copper-aluminum separation, meeting regenerated metal material standards.
- E-Waste Recycling: The Eddy Current Sorting Machine sorts copper particles ≥0.5mm from circuit board fragments, with a daily processing capacity of 15 tons.
Cable Wire
Plastic
Metal Waste
Electronic Product
End-of-Life Vehicles
Why Choose RELIABLE Eddy Current Sorting Machine
Efficient Non-Ferrous Metal Sorting
Precisely separates aluminum, copper, die-cast metals, and other non-metallic materials with particle sizes ranging from 3mm to 100mm. The high processing efficiency boosts recovery rates by over 30%, significantly improving the recovery value of metal resources.
Dynamic Adjustment for All Scenarios

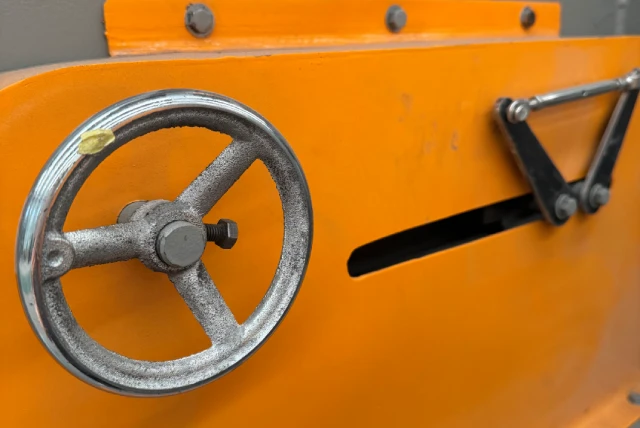

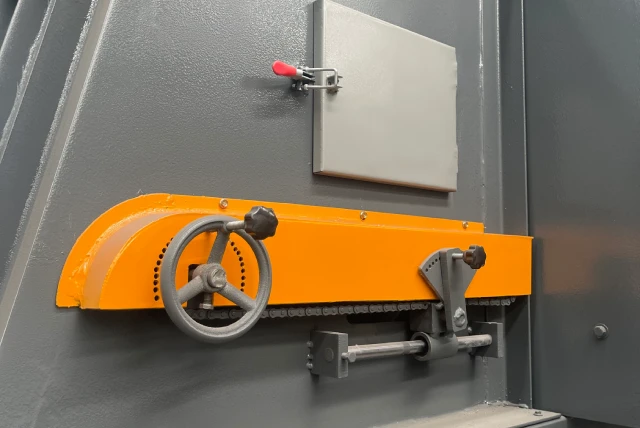

The adjustable magnetic rotor speed (0-3000rpm) perfectly matches the magnetic response of different materials. Eccentric angle adjustment and belt speed motor drive optimize the sorting trajectory in real-time, reducing metal residue and improving sorting accuracy.
Low Energy Consumption, Durable & Efficient
The single-drive design reduces energy consumption by 25% compared to traditional equipment. The rare earth permanent magnets ensure a magnetic decay rate of less than 5%, offering long service life and low maintenance costs. The new Eddy Current Sorting Machine features a modular design, supporting quick on-site installation, allowing integration into existing production lines within 2 hours, saving both time and costs.
Contact RELIABLE for Your Eddy Current Sorting Machine Solution
As experts in the research and manufacturing of Eddy Current Sorting technology, RELIABLE understands that there are no one-size-fits-all solutions, only the perfect custom design for your needs.
Get in touch with us today, and let’s start reducing your waste more efficiently and effectively!
Contact now!
Specification
| Model | Roll dia.(mm) | Speed (r/min) | Belt width (mm) | capacity (t/h) | Power (kw) | weight (kg) | Dimension(m) |
| 400 | 300 | 0 – 3000 | 450 | 2 – 4 | 3.0 + 0.55 | 1000 | 3100×1450×2000 |
| 600 | 300 | 0 – 3000 | 650 | 4 – 6 | 4.0 + 0.75 | 1400 | 3100×1885×2000 |
| 800 | 300 | 0 – 3000 | 850 | 5 – 10 | 7.5 + 1.1 | 1800 | 3100×2033×2000 |
| 1000 | 300 | 0 – 3000 | 1050 | 6 – 12 | 11 + 1.5 | 2200 | 3100×2233×2000 |
| 1200 | 300 | 0 – 3000 | 1250 | 2 – 13 | 11 + 2.2 | 2400 | 3100×2433×2000 |
| 1400 | 300 | 0 – 3000 | 1550 | 8 – 15 | 15 + 3.0 | 2600 | 3100×2633×2000 |
