Applications
High-purity separation of metals (such as waste copper and aluminum) and plastics (purity > 99%).
Separation of conductor/non-conductor materials, including aluminum plates, PCB boards, waste wires, cables, and more.
Mineral sorting for various applications in recycling and waste management.
Suitable Raw Materials
- Metal and non-metal mixed particles.
- Conductive and non-conductive materials.
- Aluminum-plastic/copper-plastic waste, circuit boards, and more.
- Mineral sorting applications.

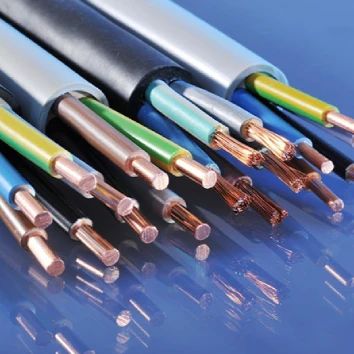

Wires and Cables

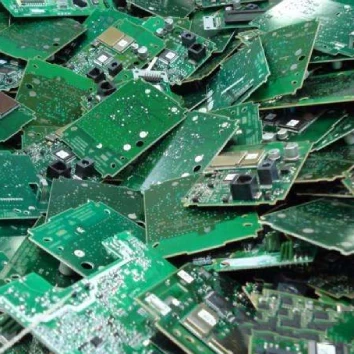

Circuit Boards
Pharmaceutical Boards
Aluminum-Plastic Composite Boards
Ceiling Tiles
Toothpaste Tubes
Minerals

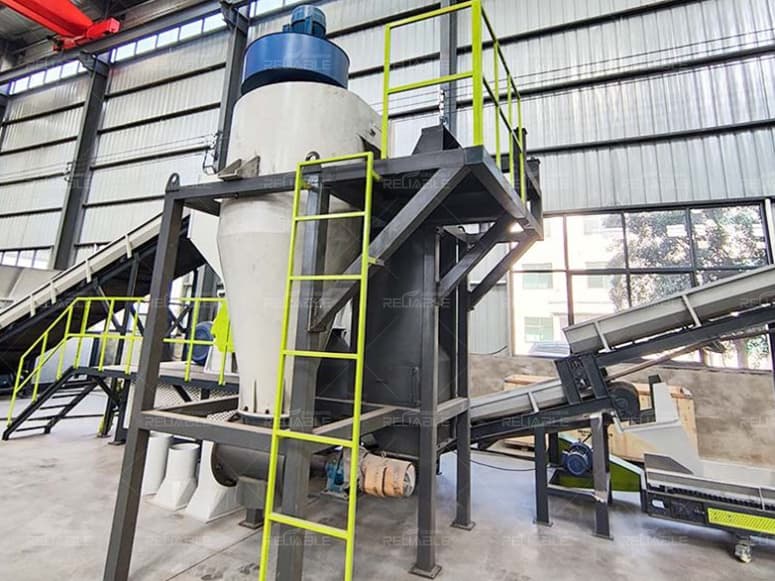

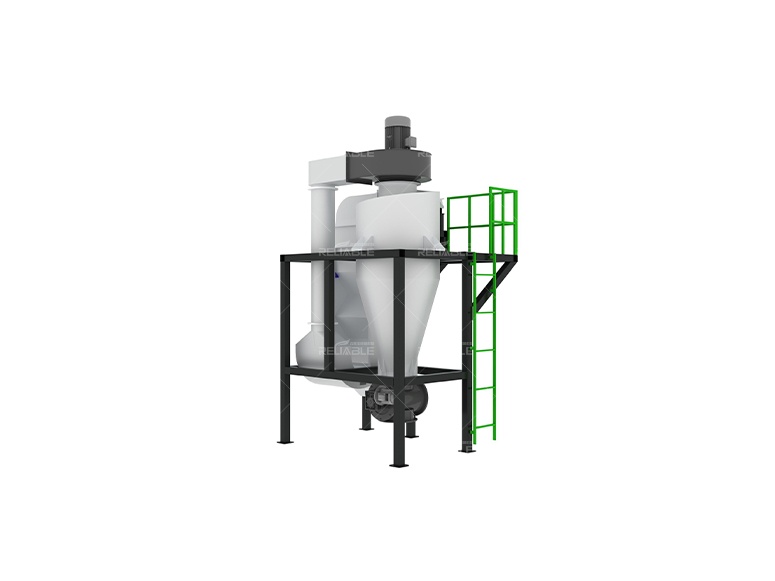

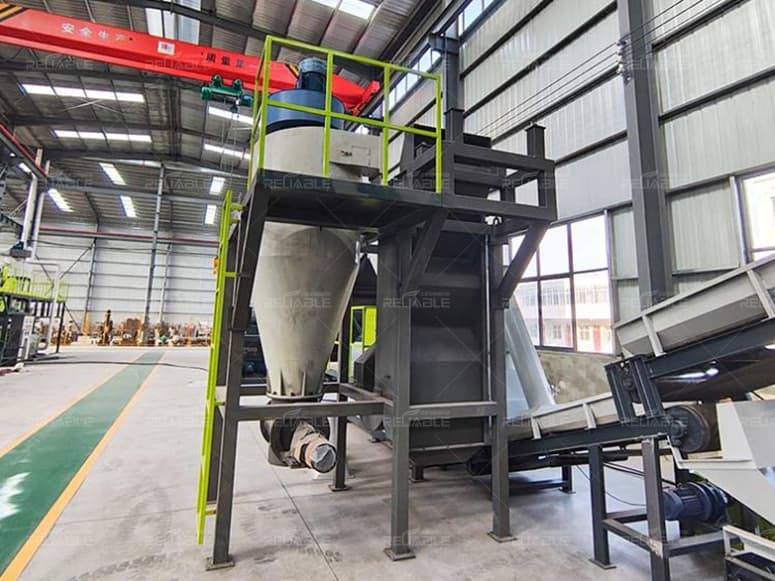

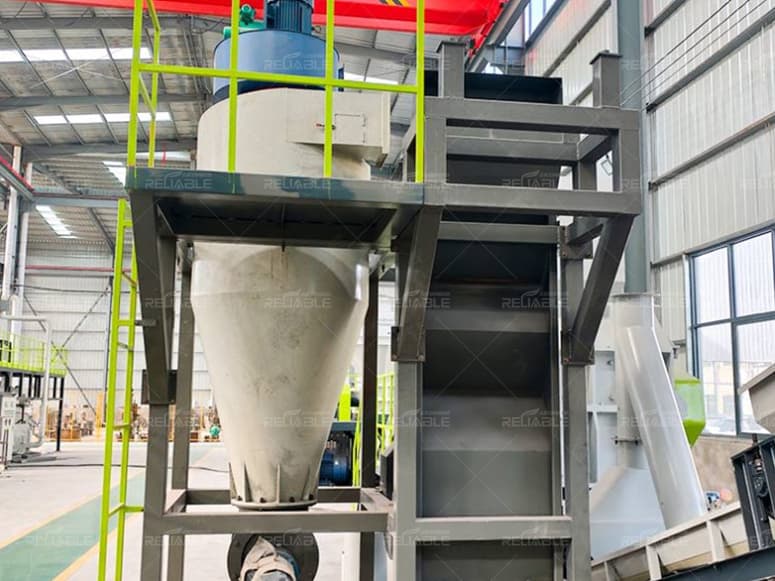

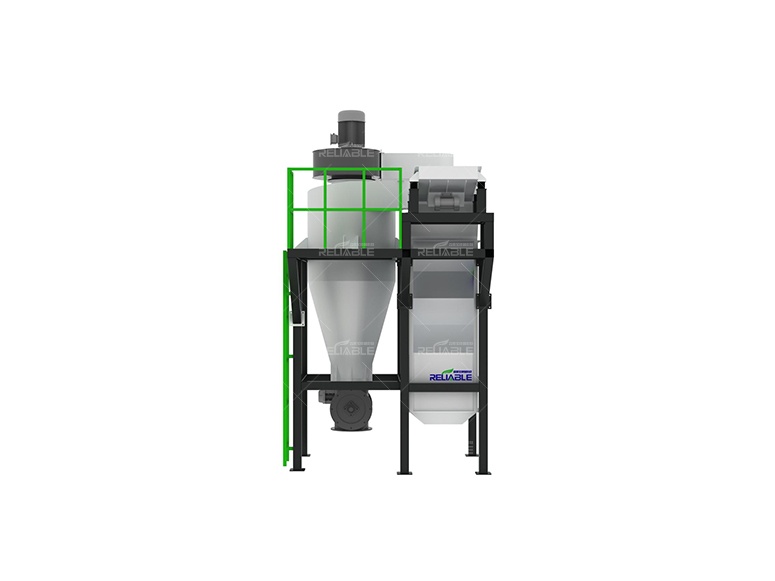

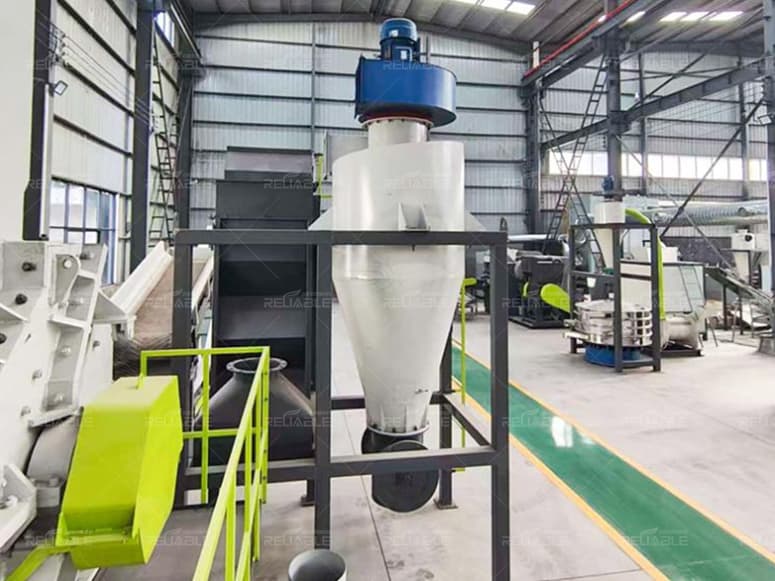

Optional Dust Separation System
RELIABLE Electrostatic Sorting machine can be equipped with a dust separation system, ensuring that dust generated during the sorting process is effectively purified in real-time, maintaining a clean and safe production environment. This system is particularly useful in industries like metallurgy and chemistry, where gas purification and dust recovery are essential.

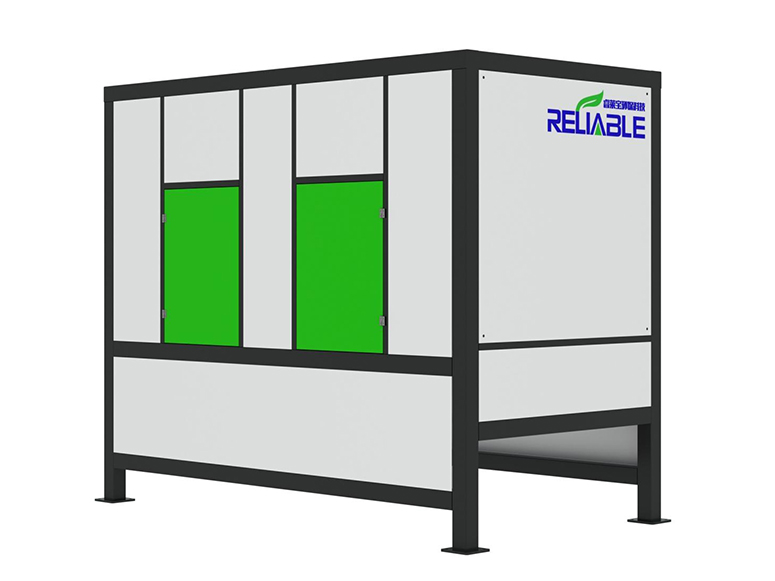

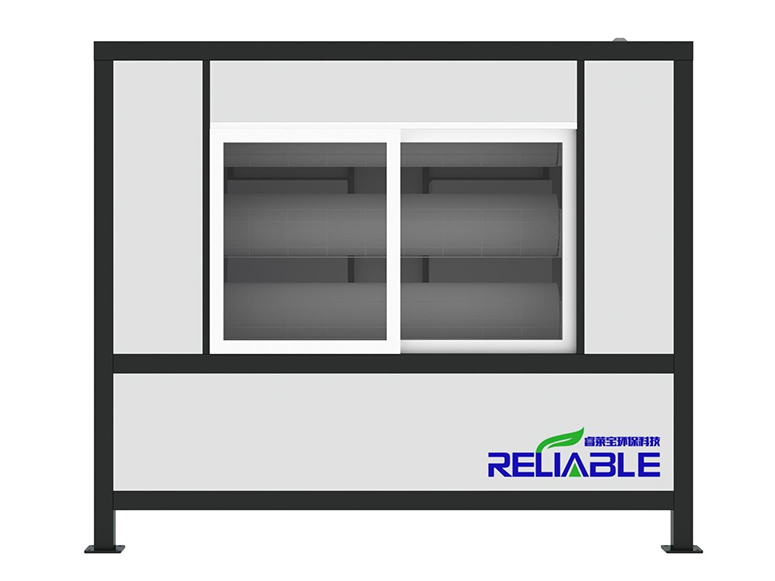

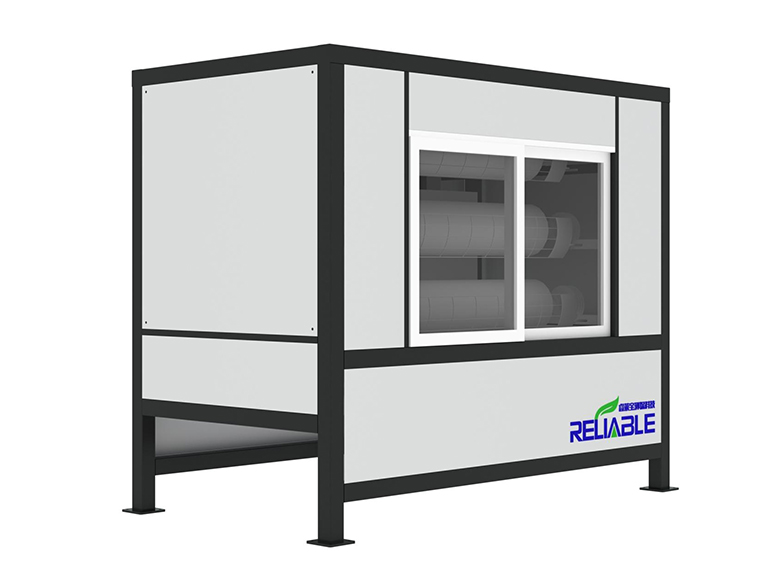

Working Principle

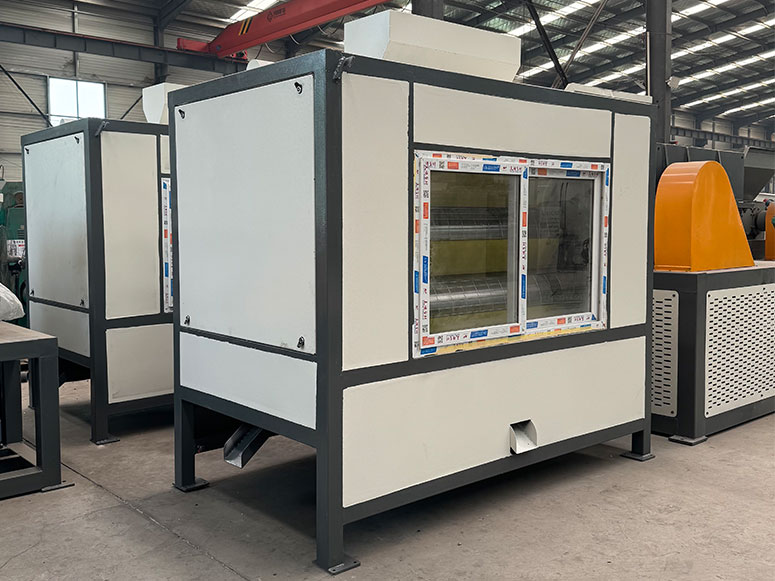

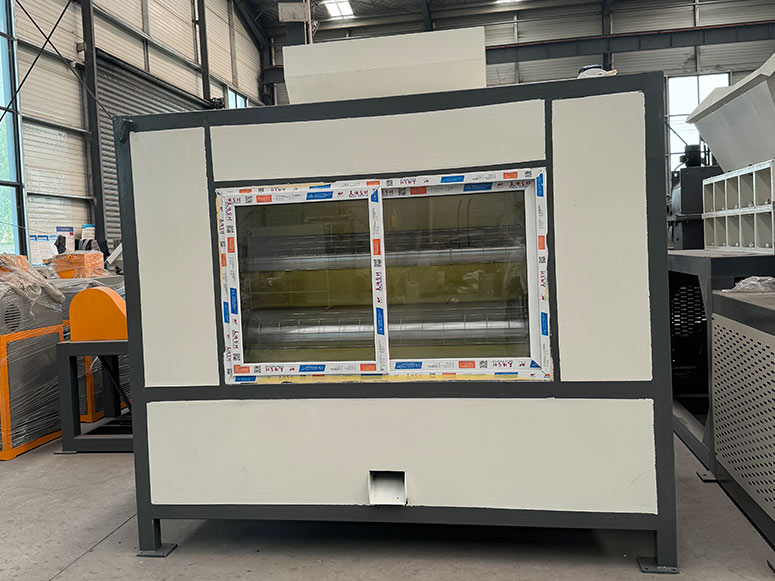

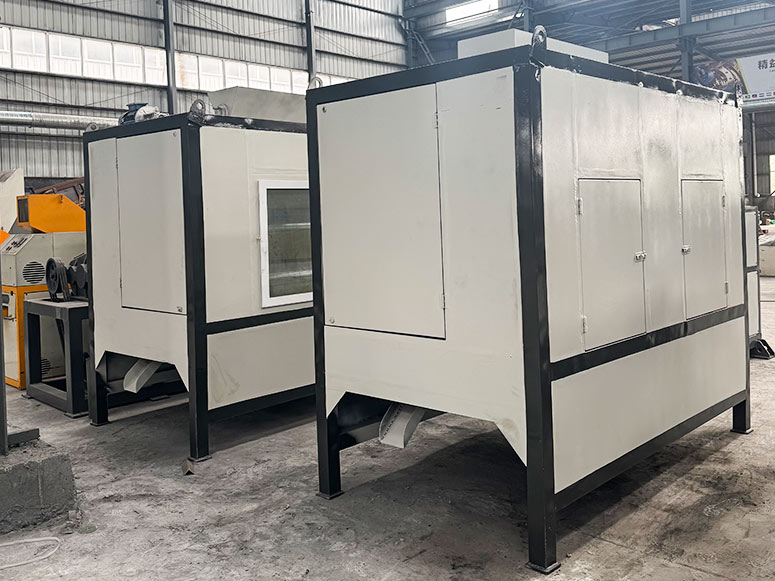

The Electrostatic Sorting equipment operates based on the electrical property differences of materials. Under the influence of a high-voltage corona field, conductors (such as metals) acquire charge and are repelled by the drum electrodes, moving tangentially. Non-conductors (such as plastics) are attracted to the electrostatic forces on the drum surface and are scraped off by brushes. This method achieves a highly efficient, purely physical separation process without altering the inherent properties of the materials.
Why Choose RELIABLE
Dual Sorting, High Purity
The Electrostatic Sorter supports two-stage separation, with an enhanced ability to separate metals and plastics, significantly improving material purity and increasing the value of the recycled product.
Separation Rate Up to 99%
Thanks to optimized design and extensive research, our equipment achieves a separation rate of 99%, with impurities reduced to below 1%, ensuring top-notch separation quality.
Dual Function, High Efficiency
One machine performs both metal and plastic sorting, effectively completing dual tasks, saving on equipment costs and improving production efficiency.
Energy-Saving and Cost-Effective
Utilizing advanced technology, our Electrostatic Sorter runs with low energy consumption, reducing operational costs while contributing to sustainable, eco-friendly production.
Wide Range of Applicable Raw Materials
Capable of handling a variety of materials, including metal/non-metal mixtures, aluminum-plastic waste, and PCB boards, meeting the diverse needs of our clients.
Purely Physical Separation Process
Its physical process maintains the material properties and does not affect the recyclability of the materials, making it ideal for high-quality resource recovery.
Want to optimize recycling efficiency and boost your business profits?
The Electrostatic Sorting machine excels in efficient physical separation using electrical property differences, offering high purity, low energy consumption, and eco-friendliness. It is widely used for waste recycling and mineral sorting, providing an effective solution for a sustainable future.
Get in touch with us today, and let’s start reducing your waste more efficiently and effectively!
Contact now!
Specification
| Model | Power (kw) | Capacity (kg) | Dimension (m) | weight (T) |
| 1500 | 4.5 | 150 – 300 | 2020×1400×1650 | 0.8 |
| 2000 | 4.5 | 200 – 400 | 2520×1400×1650 | 1 |
| 1500 – 3 | 5.5 | 300 – 500 | 2020×1400×2150 | 1.3 |
| 2000 – 3 | 5.5 | 400 – 600 | 2520×1400×2350 | 1.5 |
| 1500 – 6 | 7 | 800 – 1200 | 2020×2200×2150 | 2 |
| 2000 – 6 | 7 | 1000 – 1600 | 2520×1400×2350 | 2.3 |
